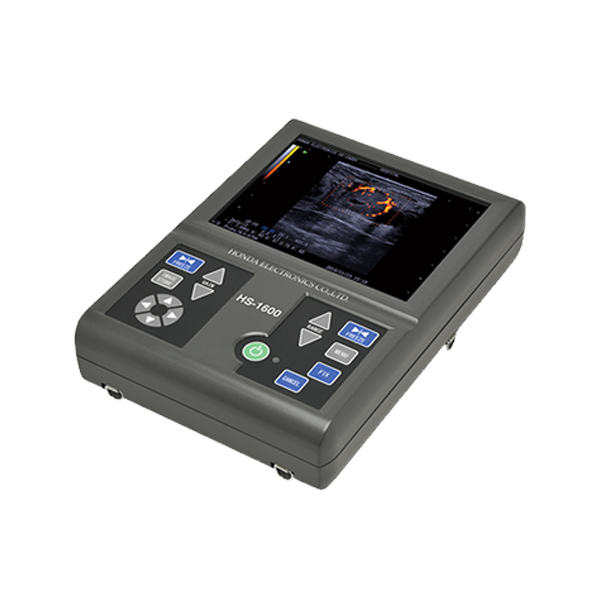

Honda HS-1600V Portable Veterinary Ultrasound

Description

Key Features

The Honda 1600V combines portability with advanced imaging technology, offering exceptional clarity in both shallow and deep structures. Featuring Honda’s H-res image processing, Doppler functions, and a high-luminance LCD that stays visible outdoors, the system is built for versatility. Lightweight yet powerful, the 1600V provides up to three hours of battery life and includes intuitive features like presets, body mark storage, and USB connectivity for seamless workflow.

Special Feature: Excellent Ultrasound Imaging

Mobile, compact system with high-quality imaging that clearly represents the scanning region in detail.

Honda’s Unique Image Processing Technology — H-res (Resolution Technology)

• Resolution: Visualizes delicate tissue structures in shallower regions
• Penetration: Provides clear resolution in deeper organs
• Boundary: Enhances bone observation
• Clarity: Reduces vascular noise
• Mild: Softens image enhancement effects
• OFF: Displays direct ultrasound image

Doppler Functions

Color Flow Mapping (CFM) and Power Doppler (PD) maintain high-quality black-and-white imaging during use.
Compatible probes: HLV-875M, HCS-8712M, HCS-736M, HLS-884M, HLS-882MT.
Example: Peripetal blood flow imaging of Holstein cattle with HLV-875M.

Compact & Portable

Lightweight (approx. 3kg) for easy carrying, reducing strain during house calls or outdoor scanning.

Dual Power Options

Built-in high-performance lithium-ion battery supports up to 3 hours of use without external power. An integrated battery status report provides visual alerts when charge is low.

High-Function LCD Display

• High-luminance LCD with glass bonding ensures excellent visibility, even in direct sunlight.
• Anti-fog design prevents condensation with sudden temperature or humidity changes.
• Wide 170° viewing angle (vertical and horizontal) supports diagnosis from various positions in tight spaces.

User-Friendly Design

• Shoulder belt allows hands-free operation, reducing fatigue during long sessions.
• Preset registration for quick recall.
• Multiple body marks for easy identification and storage of diagnostic areas (sample images available).
• USB ports for saving movie and still images directly to USB memory (approx. 100 images storable in system memory).
• Simplified interface with minimal buttons, operable with either left or right hand.
